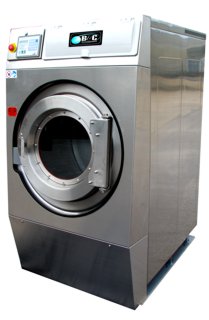

HP Series
Our HP line of Professional washer-extractors is perfect for your on premise laundry. Fixed mount operation and our excellent pricing means you'll save time and money in your laundry. Simple operator interface and robust design means infrequent maintenance. All 304 (18/8) stainless steel cabinet and wash area protects your investment. Available in 60 pound capacity.
Features
Advanced Microcomputer, PC programmable, programs may be transferred with memory cards.
1 Compartment supply dispenser for dry and liquid chemicals
6 connections for automatic chemical injection
Stainless Steel cabinet. All parts in contact with the wash solution made of 304 (18/8) stainless steel.
Inverter drive - programmable variable speed
Single motor drive
Cool Down
Programmable water levels
Programmable water temperature
Rear drain connection

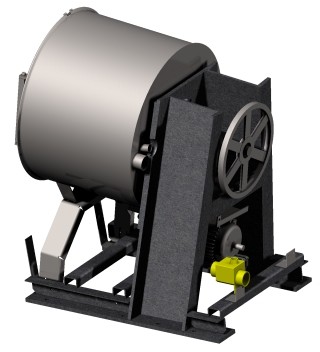

Solid Mount Construction
Amazing strength and fewer parts give the HP series extra long life, without needless breakdowns. The frame is engineered, computer analyzed, and tested to ensure for a lifetime of rigorous operation. It has a protective powder coating to reduce possible corrosion and prolong the life.
The EL-6 Control
The EL-6 electronic control center is easy to use and ensures that the maximum productivity and the lowest cost of operation are obtained. The microprocessor controls the temperatures, water levels, speeds, and maintenance intervals. It can be programmed stand alone, with memory card, and with a PC. The EL-6 can also be programmed to display in many different languages.
Bearing Housing
Rugged cast iron construction is used in our single durable bearing housing. The bearing housing increases the structural integrity and provides for longer bearing and seal life. The revolutionary CARB torroidal SKF bearing is used in the machine. It is the ultimate long life solution for high-speed washer-extractors. The shaft is made of high tensile strength steel, that meets the high standards used for load calculation of the bearings and shaft. Two double lip seals and face seals protect the bearings. The seals as well as the bearings can be greased manually yielding much longer life. The machines have provision for easy installation of automatic lubricators. Should the seals leak, the main bearings will not be damaged, thanks to an extra large leak off area in the bearing housing. A large leak off area is the answer to long bearing life, as water cannot enter the bearings.
HP Series Brochure
PDF, 1,546k
Features and specifications for the Hardmount Professional Washers.
HP Specifications
Specifications for the Hardmount Economy Washers.
Printer friendly Specifications
PDF, 47k
Specifications for the Hardmount Economy Washers.
